1/5 Scale RC Desert Truck FID Voltz V2, All Wheel Drive & Solid Rear Axle
$1,850.00 $2,850.00Price range: $1,850.00 through $2,850.00
You may be interested in...
Features
- Full Upgraded Chassis (Unique)
- 4 Wheel Drive
- Rear Solid Axle
- Stock 12S Power System (Unique)
- Hydraulic Brake Add-On (Unique)
- 3 × Metallic Differentials
- Dual Shock Setup (Unique)
- Dual Steering Servo (Unique)
- Lenghway Motor Setup (Aesthetic Mechanical Symmetry) (Unique)

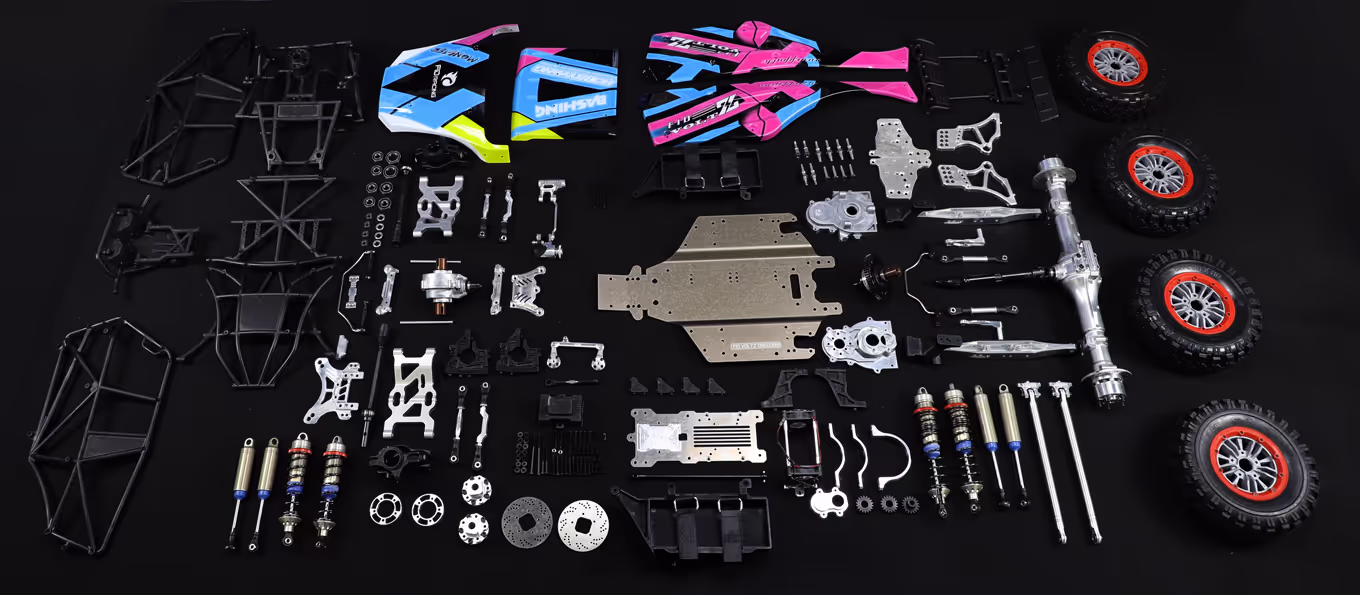

In the box
- ARTR Version contains fully upgraded rolling chasis, Hobbywing EZRUN 70125SD & Hobbywing EZRUN MAX4 HV, servos
- Roller Version contains only fully upgraded rolling chassis
Needed to complete
- ARTR Version needs radio, transmitter, charger, hydraulic brake (optional) to complete.
- Roller Version needs Hobbywing motor & ESC (Max4 Only), servos, radio, transmitter, charger, hydraulic brake (optional) to complete.
Delivery
Now we have 2 body options: clear body and pattern printed one (like the one in this page). If you need clear body, please specify in the order note.
Order Notes
- If goods is in stock, we’ll deliver the order in 3 ~ 7 days.
- If goods is out of stock, please check with our sales team for delivery timeframe.
- We will use express courier service like DHL, Fedex. International transport will take 5 ~ 7 days.
- Please read our Refund, Return and Order Cancellation Policy carefully before placing order.
Optional Payments
Overview

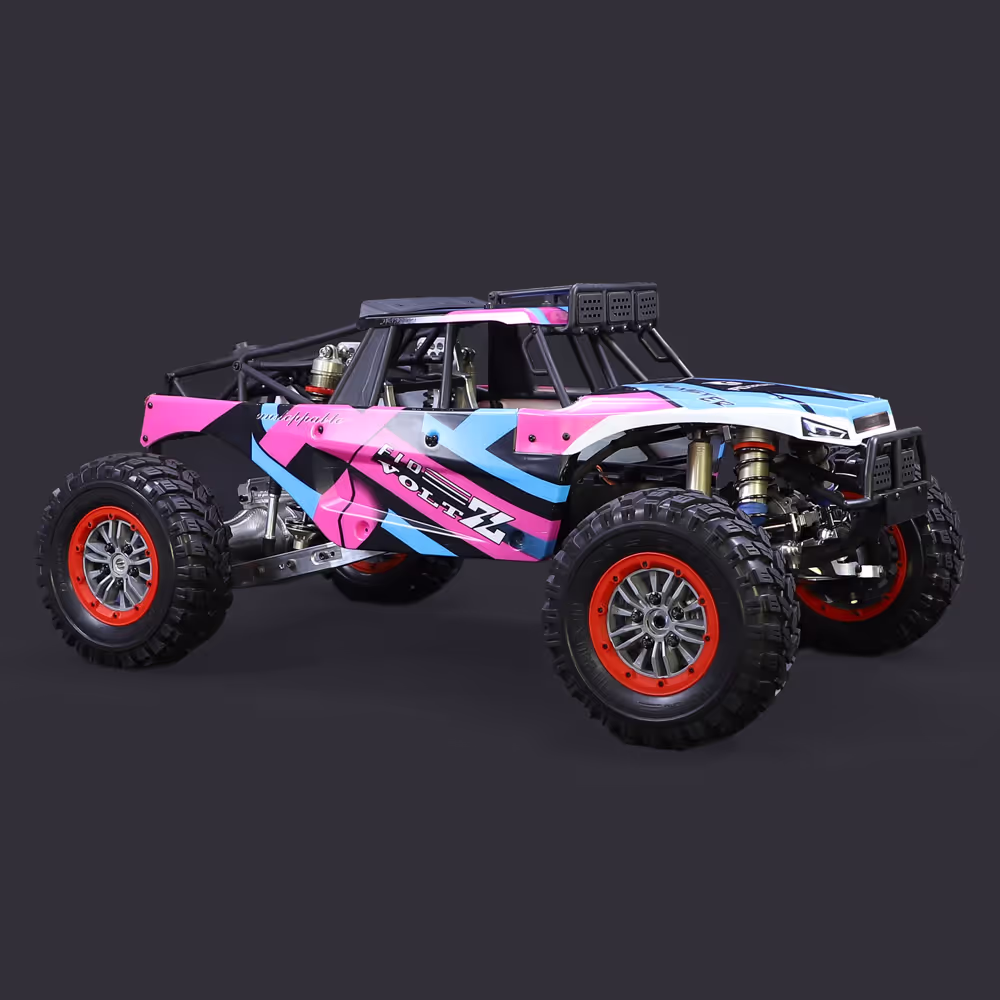

Unleash the rugged capability of the FID Voltz, a 1/5 scale desert truck built for the toughest off-road challenges. This large-scale RC model comes equipped with a powerful 12S Hobbywing power system and is designed to handle diverse terrains with ease. Featuring a robust rear solid axle, front independent suspension, and a dual shock system, the Voltz offers superior control and durability. Its 4-wheel drive system, complemented by three differentials and anti-explosive belted tires, ensures reliable traction and speed. Crafted from all-metal components and fully upgraded, the Voltz is also ready to accommodate our proprietary hydraulic braking system, setting new standards in RC performance and design. Dive into the adventure with FID Voltz and experience a new pinnacle of RC innovation.
FID Voltz will have two options: Roller KIT and RTR 12S, and 2 Shell options. This time we added a towhook mount. 4 × wheel hydraulic braking system will be available and serves as an add-on. More fun are to be found on this unique thing.
Specifications

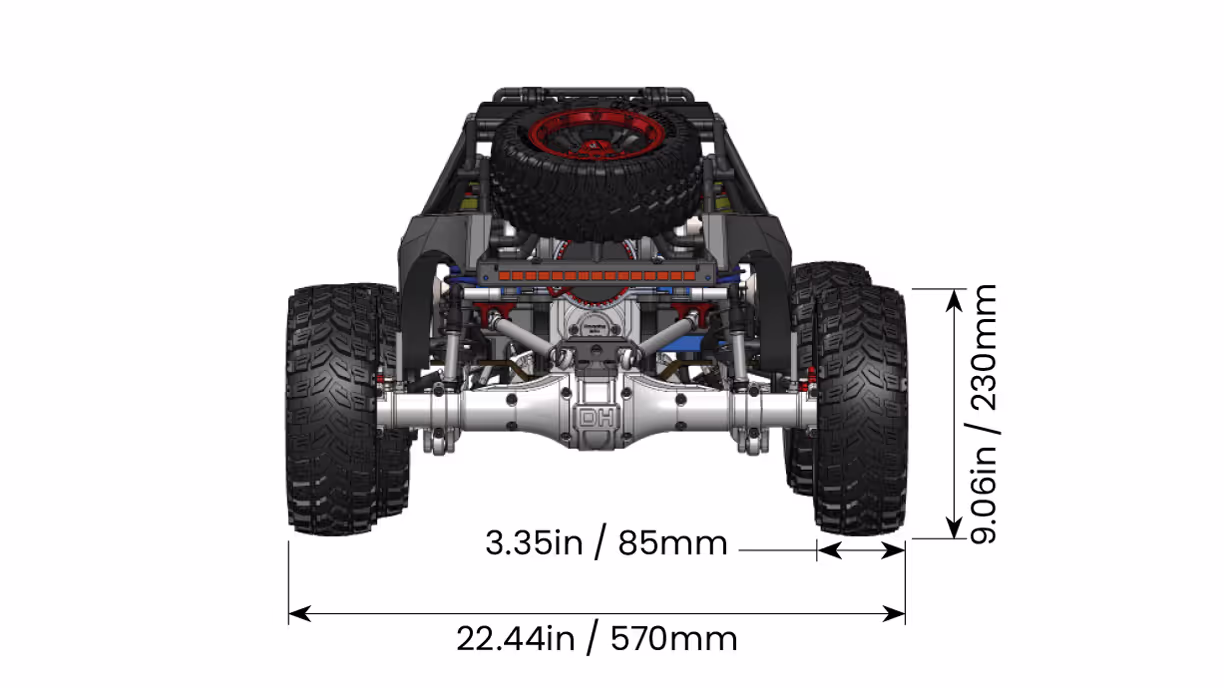

- Size (L × W × H): 35.83 × 22.44 × 16.69in / 910 × 570 × 424mm
- Roller Weight: 40.79lb / 18.5kg
- RTR: 59.52lb / 27kg including 2 × 6S batteries
- Ground Clearance: 5.51in / 140mm
- Tyre: 9.06 × 3.35in / 230 × 85mm, 0.24in / 6mm thick tire tread, natural rubber
- Battery Tray: L 7.48in / 190mm × W 2.95in / 75mm × H unlimited (mm)
- Chassis: Alloy 6061-T6, U-Shape 5mm thick, CNC machined and Anodized
- Wheel Rim: Nylon PA6, real life scale 5 × lugs fastened wheel
- Wheet Hub: CNC machined billet alloy, comes with brake disc ready
- Roll Cage: Nylon PA6, 0.39in / 10mm dia.
- Shell: 0.06in / 1.5mm thick PC sheet
- Gear Module: 0.06in / 1.5mm
- Total Gear Ratio: 1/11.025
- Max Speed: 68.35mph / 110km/h
- Recommended Steering Servo: 2 × 154.32lb / 70kg Metallic Servos
- Steering: Ackermann Steering Mechanism, designed with automatic return-to-center and protection of servo against impact or too much turning force
- Recommended ESC: HobbyWing Max4 300A 12S
- Recommended Motor: HobbyWing 70125SD Motor in 560KV
- Connector: QS80 connector
- Optional Braking System: 4 wheel Hydraulic Braking System, Front / Rear independent controlled, 2 × hydraulic pumps in CNC alloy 7075, 2 × drive motors, 2 × cylinders / caliper, 4 x float calipers

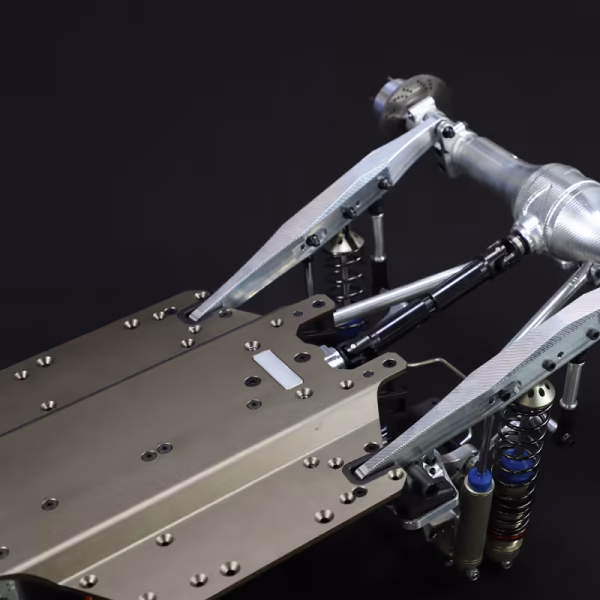

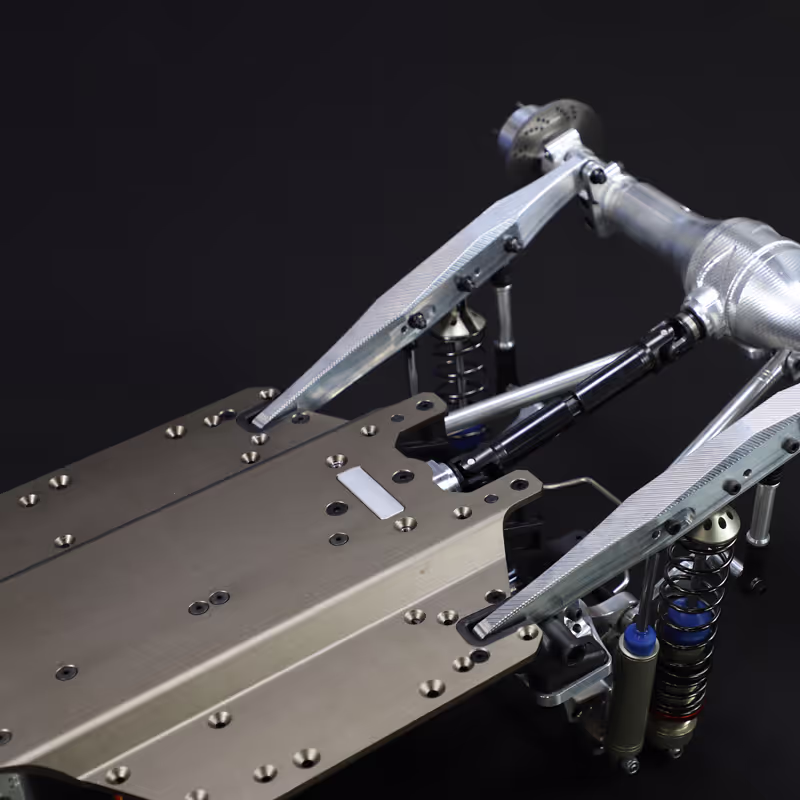

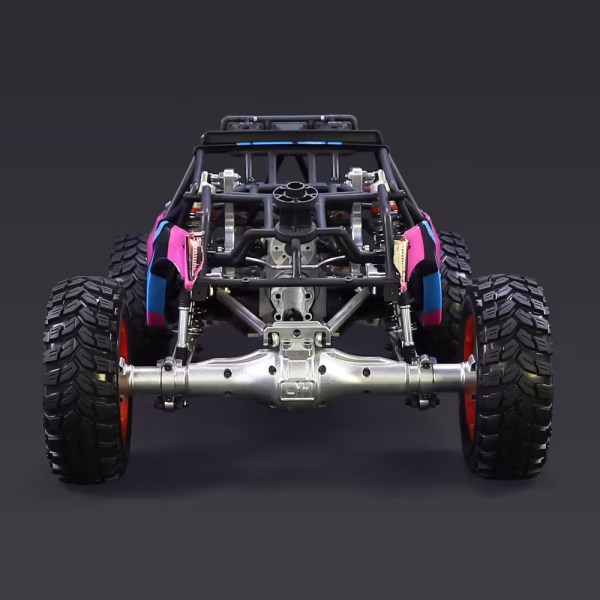

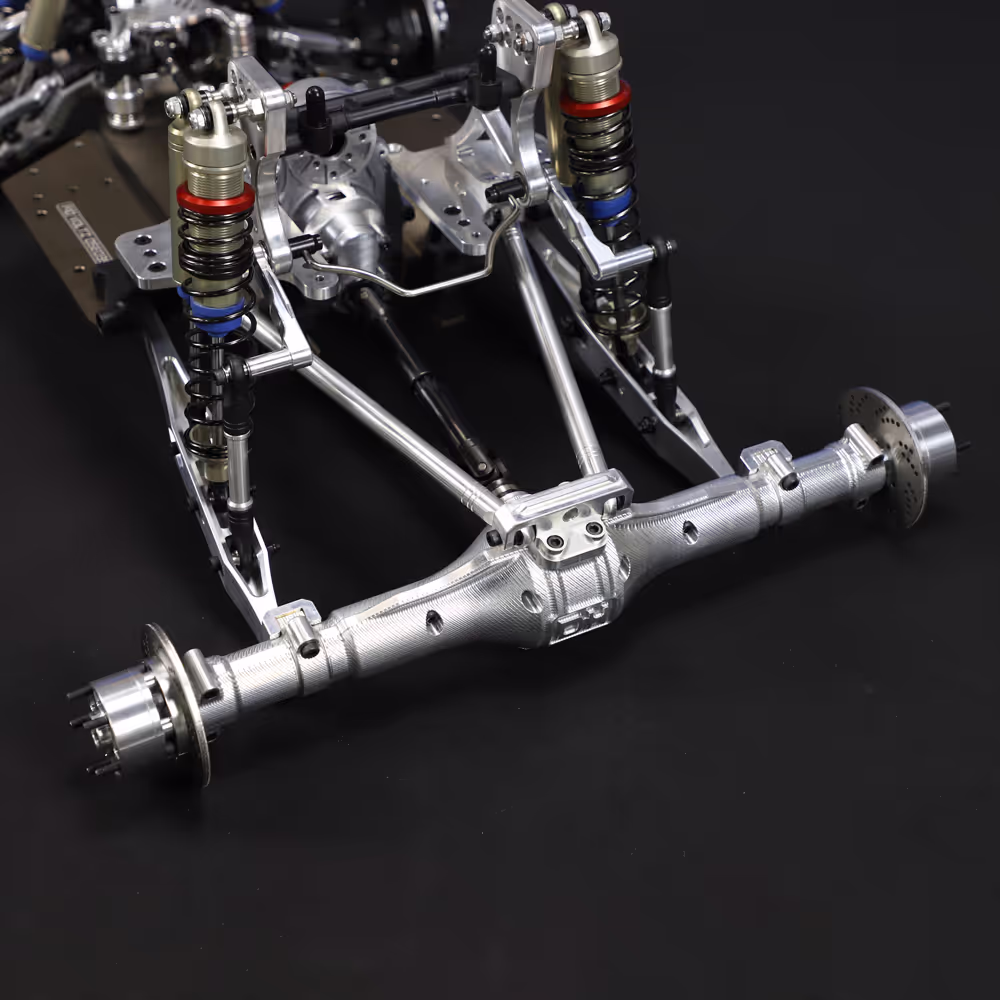

Solid Rear Axle
Housings made of one-piece alloy 6061-T6 via CNC, with beautiful tooling marks. 0.16in / 4mm thick brake disc compatible with FID Racing hydraulic braking system. Inside the axle is a metallic differential as introduced above. Wheel hub comes with 5 × lugs adapter, stable and real-life.

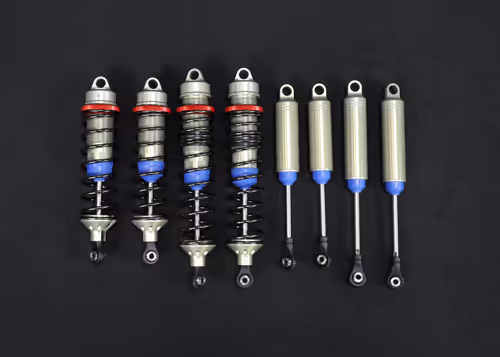

Shocks
Alloy 7075-T6 shock bodies with better abrasion resistance. Inner plugs made of best Polyoxymethylene (POM) material. Dual seal ring design, 0.28in / 7mm dia. shaft. Springs made of 0.12in / 3mm dia. music wire, treated with hardening process and black-oxidation. Rear shock consists of two springs.
Differentials
3 diffs. Small crown gears made in powder metallurgy method. Spur gear of 20CrMnTi gearing steel via CNC. Diff housing of alloy 6061-T6. 60T big gear and 2 × covers of 45#steel via CNC (equivalent to US 1045 steel and Europe C45 steel), surface black-oxided. Drive cup in 65Mn spring steel. Differential Lubricant in 50000cSt.

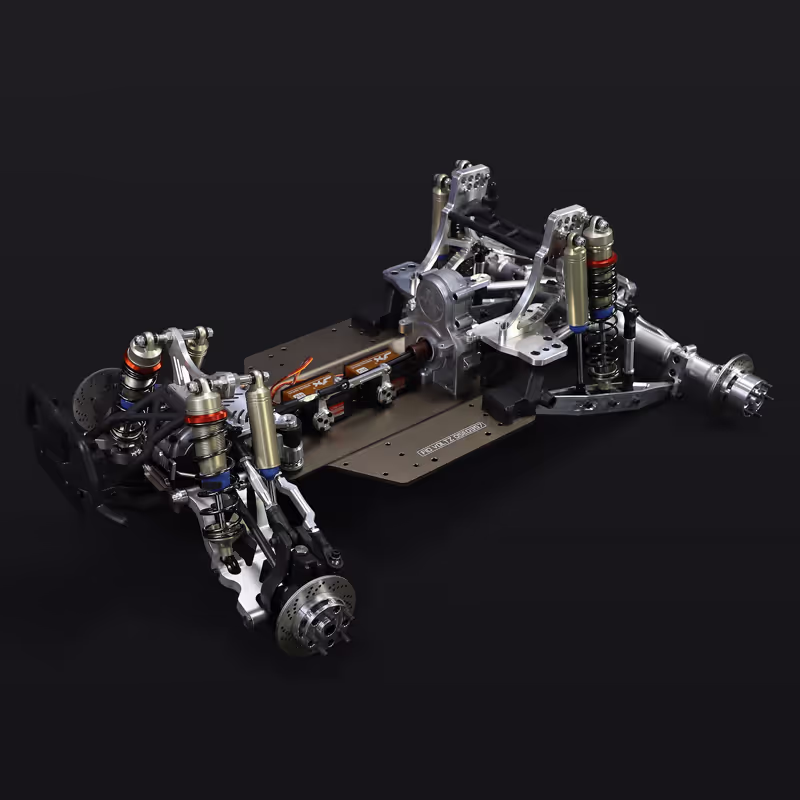

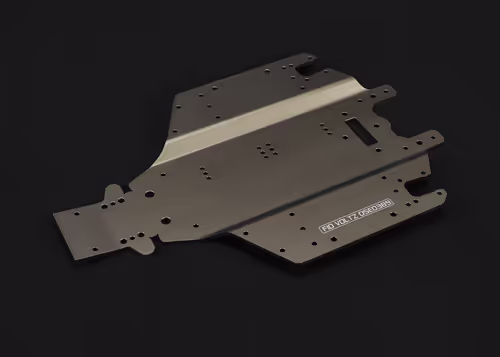

Chassis
One-piece formed chassis protective plate, made of 0.20in / 5mm thick aluminum alloy 6061-T6, CNC cut, and rolled up slightly in the center to strengthen. Each comes with an unique number for aftersales tracking.

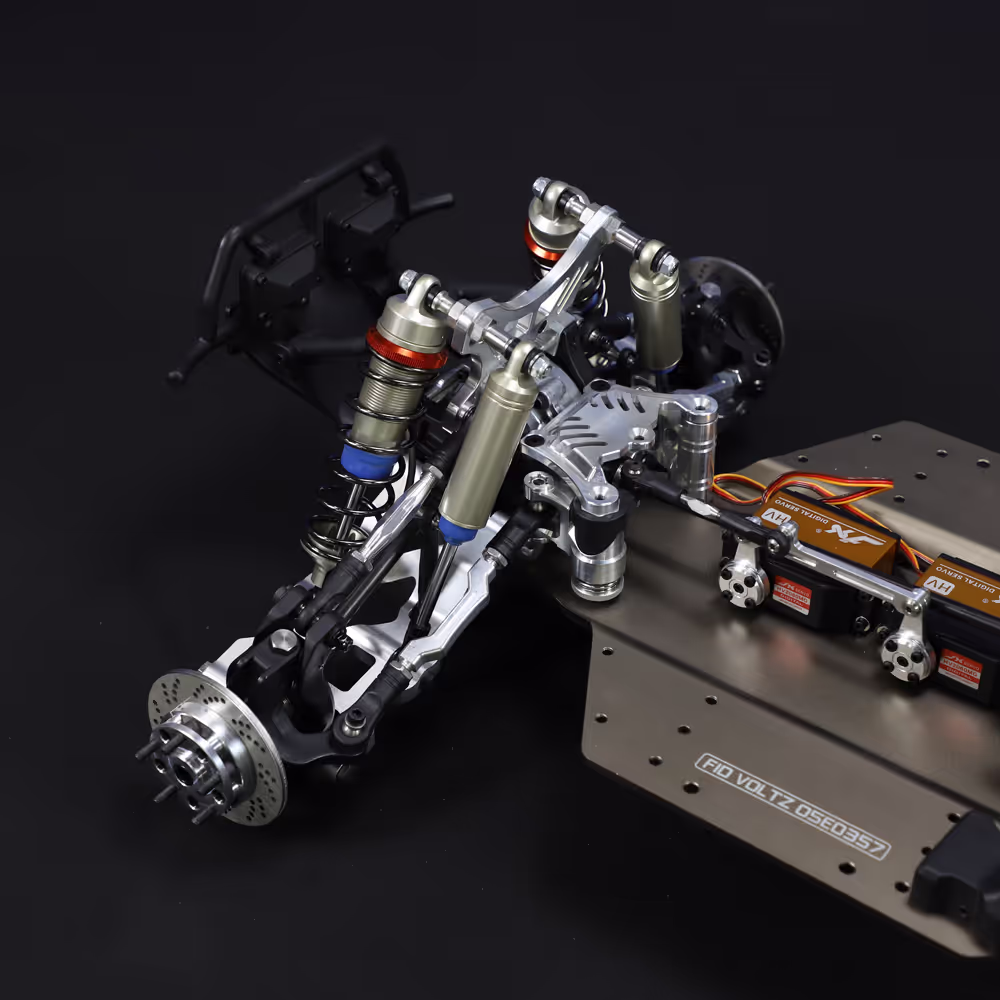

Steering
Ackermann steering system design, automatic return-to-center, servo protection mechanism against big impact or too much turning force. Steering drive comprised of 2 × 154.32lb / 70kg metallic servos, and adjustable sync servo arms, solid and quick response.

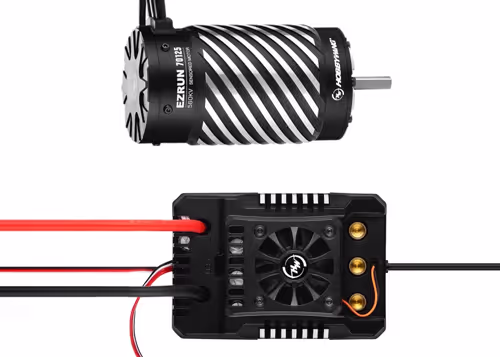

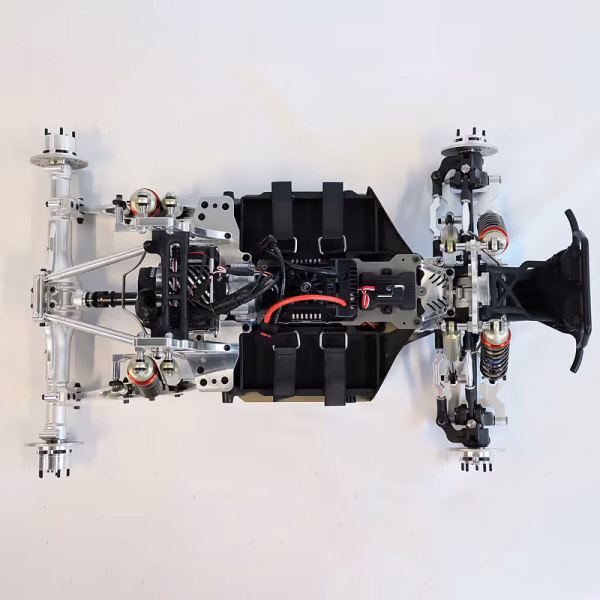

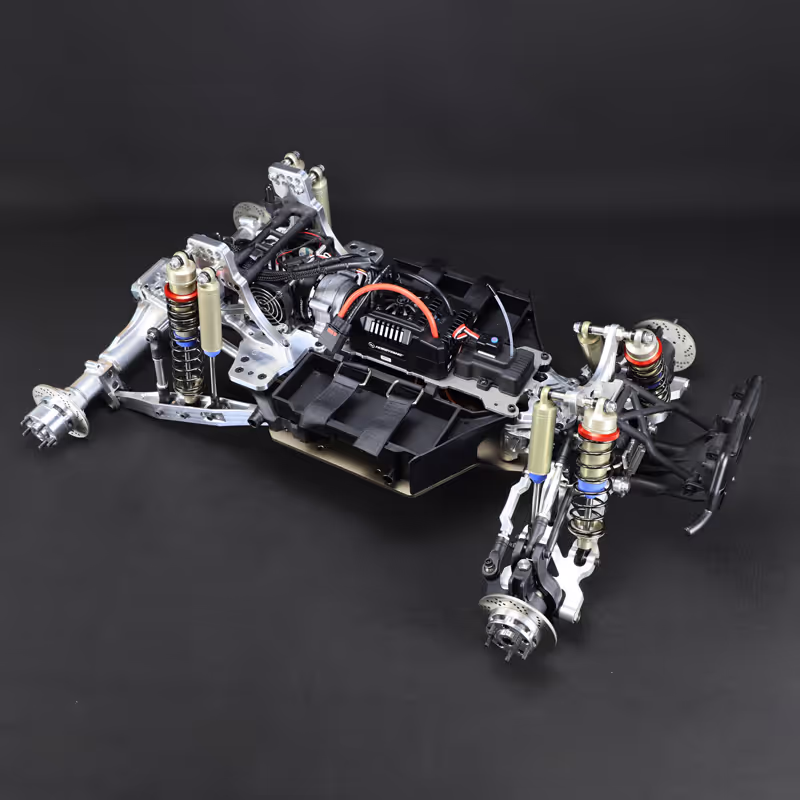

12S Power System
Power system is popular HobbyWing Max4 combo including a 560KV sensored brushless motor and a 300A / 12S sensored brushless ESC. It supports Bluetooth addon and enables Voltz to max speed 116km/h. Besides its excellent linearity provides smooth operation.

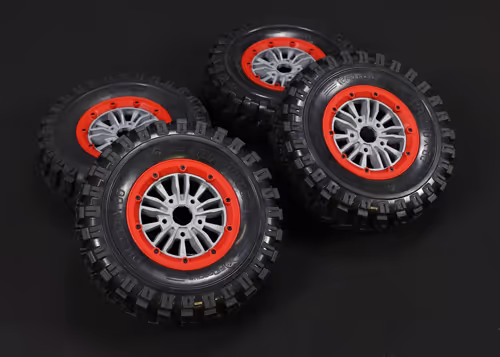

Anti-Explosion Tomahawk Tire
Tomahawk updated to belted tire, no more explosion at high speed. Wheel rim is redesigned and made of nylon material, comes with inside and outside red beadlock rings, real-life scale. Off-road tread with foam insert provides high traction.

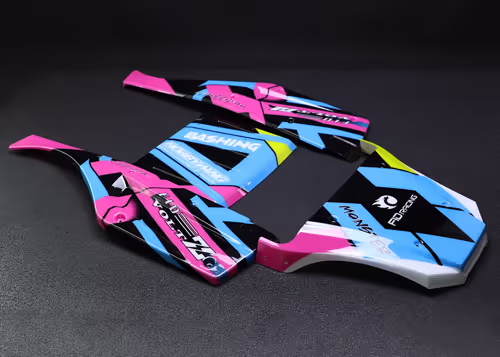

Shell & Rollcage
Body shell is made of 0.06in / 1.5mm thick PC material. Roll cage is made of 0.39in / 10mm diameter rod in high-strength nylon PA6 material.
